MIOF-154DO I²C/SPI Digital 19 mm O-Ring Media-Isolated Pressure Sensor
MIOF-154DO
19 mm digital media-isolated pressure sensor with I²C and SPI output
About the MIOF-154DO
19 mm O-ring platform with optional mounting flange and ASIC-compensated digital output. Best suited for direct I²C or SPI integration in existing 19 mm mechanical designs.
MIOF-154DO Series Features
- Compatible with Corrosive media
- Temperature Compensated
- Digital Output
- Gage & Absolute Pressures
- mV Output
- O-ring Process Port
- 1% Total Error Band
- High Linear Output
Suggested Applications
Digitally Controlled Medical-Fluid Instruments
The MIOF-154DO can provide compensated digital pressure data within dialysis, laboratory and other medical-fluid instruments using compatible media. Its 19 mm cavity-mounted format supports established fluid-block designs, while the digital interface reduces reliance on a low-level analog signal path. The controller can apply application-specific operating limits, trend analysis and diagnostic logic.
Automated Process Analyzers
Process analyzers can use the MIOF-154DO to monitor pressure during sampling, pumping, filtration and flushing sequences. Digital pressure readings allow the instrument software to verify whether each fluid-handling step produced the expected response. This pressure response can help the software detect an empty supply, blocked filter, closed valve or declining pump performance.
Digital Modernization of 19 mm Sensor Platforms
The MIOF-154DO is suited to manufacturers retaining an established 19 mm fluid cavity while migrating the surrounding electronics from analog bridge measurement to digital communication. Preserving the mechanical interface can limit fluid-system redesign, while digital compensation can simplify the main control board. The compensated I²C or SPI output provides pressure and temperature data without retaining the former analog bridge-conditioning stage.
Why Choose the MIOF-154DO Series
Choose the MIOF-154DO when an existing 19 mm mechanical design requires direct digital pressure and temperature data. It removes the need for an external analog signal chain while retaining the established MIOF-154 O-ring and flange configuration.
SPECIFICATIONS
Performance
Total Error Band
±1.0 %FSS
Resolution
14 bit
Update Time
2Khz
Calibration
2nd Order Offset, Sensitivity, and PNL
Thermal
Operating Temperature
-40 to 125 ̊C
Compensated Temperature
-20 to 85 ̊C
Thermal Error, Offset
±0.4 %FSS (Typical)
Thermal Error, Span
± 0.2 %FSS
Maximum Ratings
Excitation
5.5Vdc
Storage Temperature
-50 to 125 ̊C
Over Pressure
4x Range
Media Compatibility
Liquids & Gases compatible with 316L
Electrical
Output
Digital Output, 14 bits, 0 to 16384 cts
Protocols
I2C or SPI
Offset
10% or 5% Cts (16384)
Full Scale Span
80% or 90% Cts (16384)

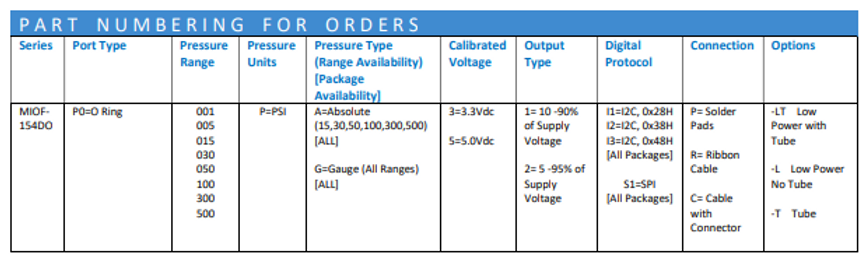

Model Number Configuration
Mechanical Dimensions
