CHT-1230 Series
(CHT) Ceramic Hybrid Technology
mV Compensated, Constant Current, High Accuracy, Low Thermal Errors
Features
- Dual In Line (DIP) Package
- Constant Current
- 1% Interchangeability
- Temperature Compensated
- Top Tube and Barb Ports
- 0.10% High Accuracy
- High Output
- Wide Pressure Range
About the CHT-1230

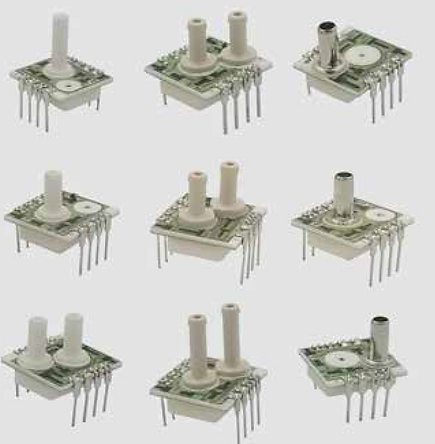

Advanced Sensor Ceramic Hybrid Technology (CHT) 1230 Series
is a temperature compensated, mV output, PCB mounted
pressure sensor packaged in a rugged Dual In Line package. The 1230 Series offers higher pressure accuracy, wider temperature range, and lower thermal errors compared to the
CHT-2 series.
SPECIFICATIONS
Performance
Accuracy
±0.1%FSS
Stability (1 Yr)
±0.10 %FSS
Hysteresis & Repeatabillity
±0.10 %FSS
Response Time
< 100 uS
Thermal
Operating Temperature
-40 to 125 ̊C
Compensated Temperature
-20 to 70 ̊C
Thermal Error, Offset
-0.5 to 0.5 %FSS
Thermal Error, Span
-0.5 to 0.5 %FSS
Electrical
Output
75-150 mV Full Scale Span (%FSS)
Excitation
0.5 to 2.0 mA
Offset
-2 to 2 mV
Bridge Resistance
1800 to 6100 Ω
Maximium Ratings
Excitation
3 mA
Storage Temperature
-50 to 125 ̊C
Over Pressure
3x Range
Media Comptabilty
Non Corrosive Gases
Model Number Configuration
Mechanical Dimensions
CHT-1230 Series
